ISO9001 Certified DN350 Rubber Bellow with Flange Sewage Duckbill Check Valve with 18months Warranty and 20Years' Experience

ISO9001 Duckbill Check Valve

18months Warranty Rubber Bellow with Flange

20Years' Experience Sewage Duckbill Check Valve

Lugar de origen:

Porcelana

Nombre de la marca:

JINGNING

Certificación:

Número de modelo:

Contacta con nosotros

Solicitar una cita

ISO9001 Certified DN350 Rubber Bellow with Flange Sewage Duckbill Check Valve with 18months Warranty and 20Years' Experience

Detalles del producto

Tamaño:

DN350

certificado:

ISO9001, CE, ZTC y otras certificaciones

Conexión:

Abrazadera

Tiempo de garantía:

18 meses

Material de goma:

EPDM, NBR, SBR, NR

OEM:

Apoyo, experiencia de 20 años

palabra clave:

Fuelle de goma con brida

Color:

Negro

Pago y términos de envío

Cantidad de orden mínima

Precio

$10.3~$98.6/pc

Detalles de empaquetado

Caja de madera

Tiempo de entrega

5-8 días laborables

Condiciones de pago

L/C, D/A, D/P, Western Union, T/T, Moneygram

Capacidad de la fuente

5000 sistemas/semana

PRODUCTOS RELACIONADOS

Customized DN300 EPDM NBR Rubber Duckbill Check Valve with 20 Years' Experience for Wastewater Applications

Consiga el mejor precio

Corrosion Resistant Maintenance Free Duckbill Check Valve with ZTC Certification for Waterproof Systems

Consiga el mejor precio

Heat-Resistant Inline Rubber Duckbill Check Valve with 1.0Mpa and 1.6Mpa Pressure Ratings in Black

Consiga el mejor precio

ISO9001 Certified DN350 Rubber Bellow with Flange Sewage Duckbill Check Valve with 18months Warranty and 20Years' Experience

Consiga el mejor precio

Contacta con nosotros

86-150-93112546

joints@chnflex.com

Contacta ahora

Descripción del producto

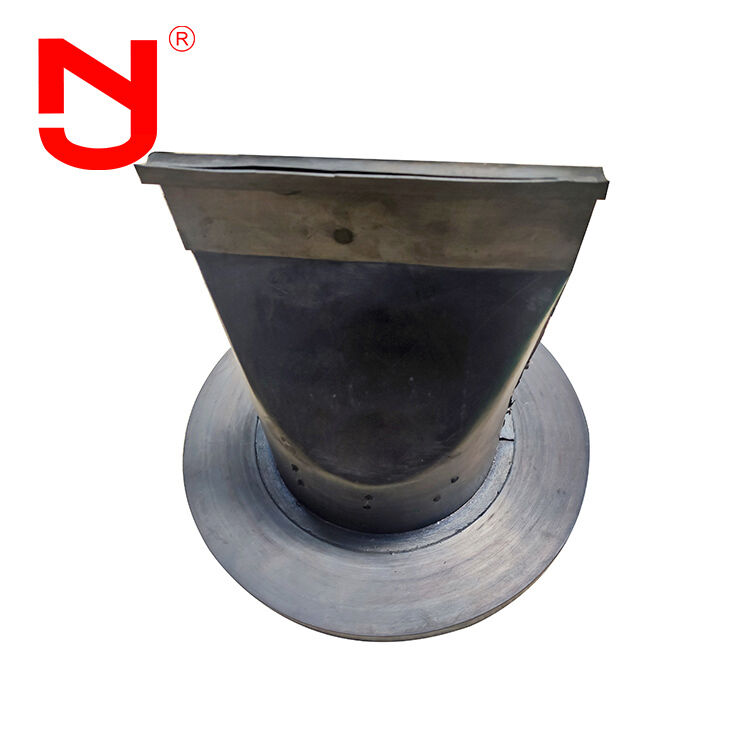

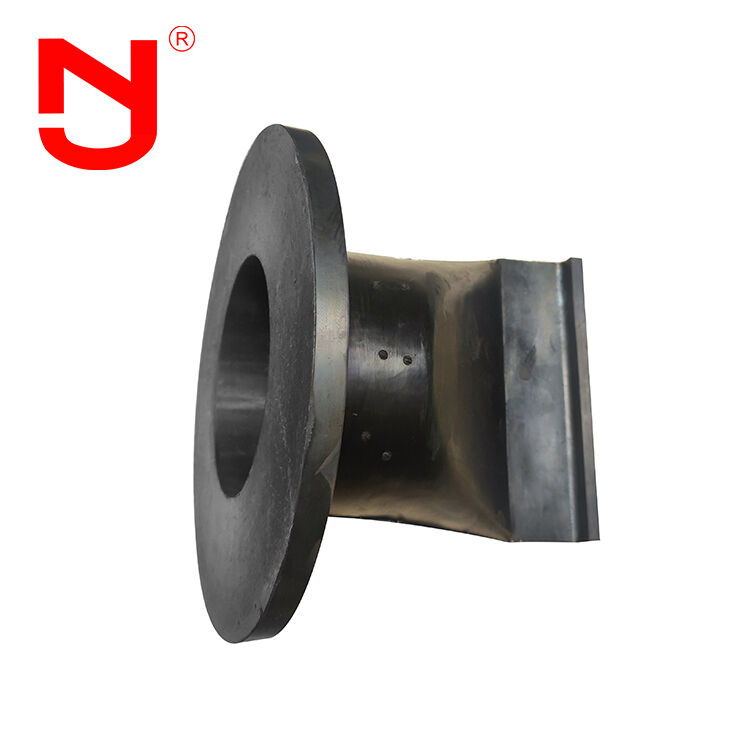

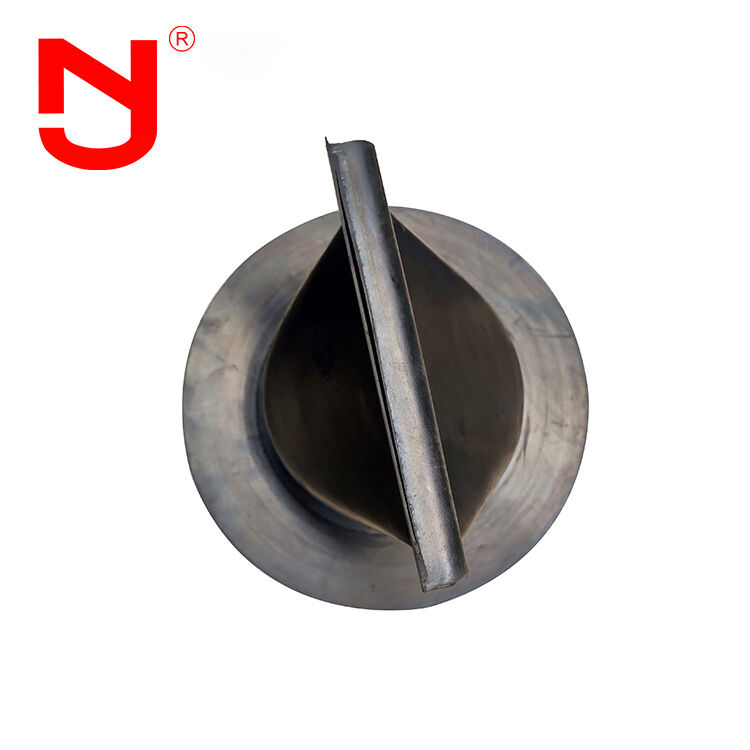

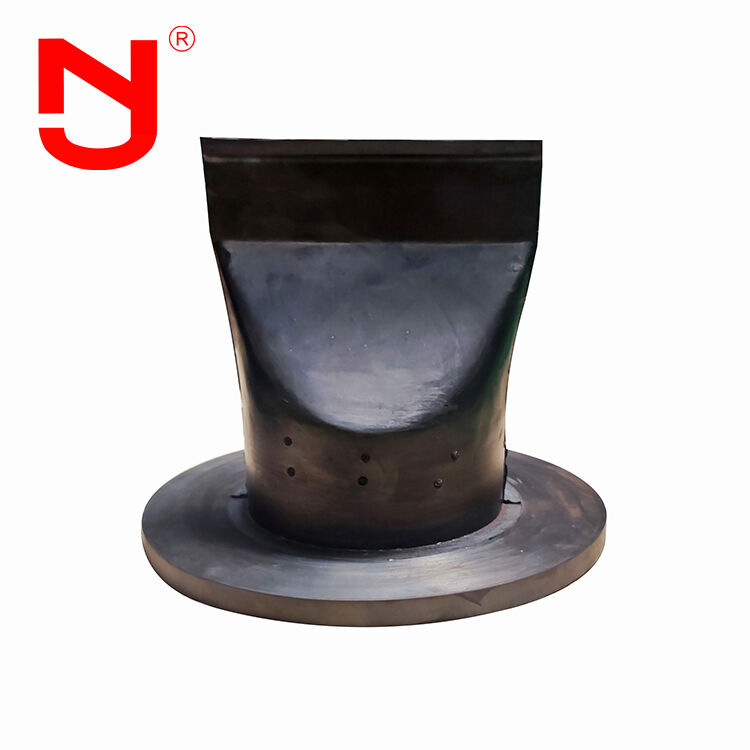

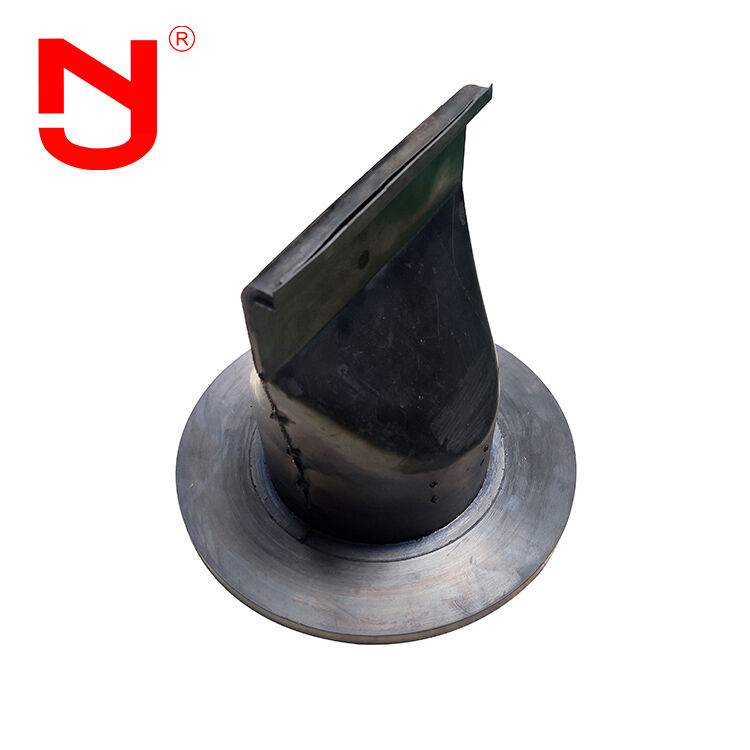

Rubber Bellow with Flange Sewage Duckbill Check Valve Clamp Connected

A Rubber Bellow with Flange Sewage Duckbill Check Valve (Clamp Connected) is a flexible rubber unit that provides vibration absorption and pipe movement compensation while integrating a clamp-connected duckbill check valve to allow forward flow and prevent backflow in sewage systems. ISO9001 Certified DN350 Rubber Bellow with Flange Sewage Duckbill Check Valve with 18months Warranty and 20Years' Experience 0

Features & Benefits

100% full rubber structure, meeting various anti-corrosion requirements (different rubber materials available)
No blockage with excellent sealing properties
Long service life, maintenance-free operation
No moving parts, mechanical components, electric signals or manual operation required
Opens with water head pressure as low as 0.01M
Minimizes head loss in systems
Customizable installation forms to meet specific requirements
Easy installation with low operational costs

Technical Specifications

Pipe Size ID	Length	Height	Flange Outside Diameter
DN(mm) \| NPS	L(mm)	H	A
50 \| 2	150	100	150
80 \| 3	220	140	200
100 \| 4	250	200	225
150 \| 6	340	265	275
200 \| 8	420	325	338
250 \| 10	520	425	400
300 \| 12	620	525	485
350 \| 14	700	625	525
400 \| 16	800	725	588
450 \| 18	900	825	625
500 \| 20	980	925	688
600 \| 24	1120	1025	800
700 \| 28	1180	1125	969
800 \| 32	1350	1400	1080
900 \| 36	1500	1525	1150
1000 \| 40	1600	1725	1325
1200 \| 48	1840	1950	1485

For custom requirements or special flange specifications, please provide detailed drawings and specifications for customized production.

Product Advantages

Competitive factory pricing
17 years manufacturing experience with 5 years export expertise
Rigorous quality control exceeding industry standards
Custom molds available for OEM production
Free samples available for quality verification
Large inventory for immediate availability

Applications

The integrated flange and duckbill check valve design enables easy installation. The all-rubber construction prevents blockage and jamming while allowing solid particles to pass through, reducing maintenance costs. Primary applications include:

Waterproof systems
Drainage systems
Pump outlets
Lifting pump stations
Submerged aeration systems

Our Services

24-hour customer support
Free product samples
Custom manufacturing services
Technical drawings provided
Multiple payment options
Factory quality inspections
Extended warranty coverage
Secure transportation packaging

Frequently Asked Questions

Q1: What's the rubber material of Rubber Bellow with Flange?

A1: Available in EPDM, CR, NBR and other materials depending on working environment and media.

Q2: Is the flange galvanized?

A2: Available in electronic galvanized, hot dip galvanized, or painted flange options.

Q3: What is the minimum order quantity?

A3: 1 piece, available as sample for quality testing before bulk orders.

Q4: Can products feature custom logos?

A4: Yes, we provide OEM/ODM services including custom branding.

Q5: Are technical drawings available?

A5: Yes, we provide detailed product drawings upon request.

Q6: Can I request product samples?

A6: Yes, we provide free samples for quality evaluation.
